JC-5384
FUTURE

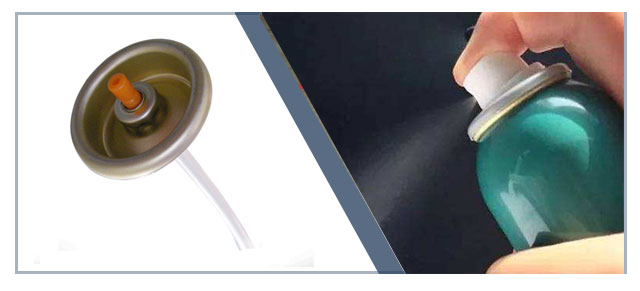

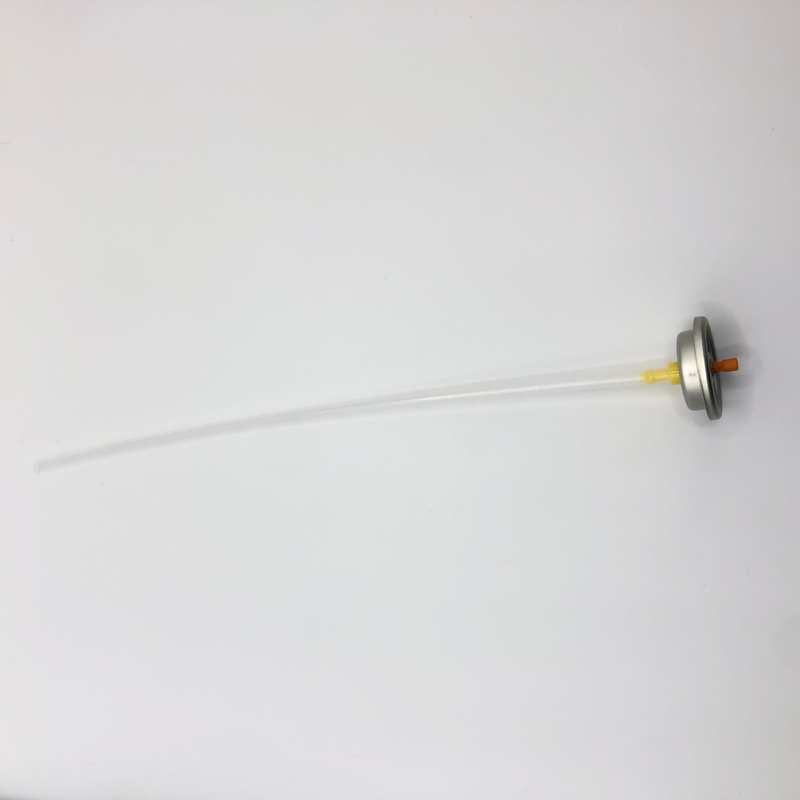

Product Description: Our Foam Clean Spray Valve is the perfect solution for industrial machinery maintenance, offering optimized cleaning efficiency to keep your equipment in top condition. This valve is expertly designed to provide precise foam dispersion, ensuring thorough cleaning of machinery surfaces, components, and hard-to-reach areas. Its robust construction and advanced features guarantee exceptional performance in demanding industrial environments. The mounting cup, crafted with clear lacquered tinplate and down dimples on both sides, ensures secure and reliable installation. The Buna outer gasket and Neoprene (N-205) inner gasket provide reliable sealing and chemical resistance. The double orifice stem, featuring two openings of ф0.51mm in orange, allows controlled foam dispersion for effective cleaning. With a stainless steel spring for smooth operation and durability, this valve is built to withstand rigorous maintenance tasks. The housing, equipped with a natural-colored tail orifice of ¢2.00mm, and the standard natural dip tube complete the valve's functionality. Optimize your machinery maintenance with our Foam Clean Spray Valve.
Bullet Points:
- Optimized cleaning efficiency for industrial machinery maintenance
- Secure installation with clear lacquered tinplate mounting cup
- Reliable sealing and chemical resistance with Buna outer gasket and Neoprene (N-205) inner gasket
- Controlled foam dispersion for thorough cleaning
- Smooth operation and durability with stainless steel spring
Code:JC-5384

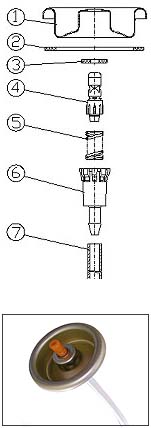

Component | Part No. | Part Description | |
Mounting Cup | 1-F4 | Both sides golden lacquered tinplate | |
Outer Gasket | 1-G1 | Buna | |
Inner Gasket | 1-B6 | Buna (KA-6712) | |
Stem | 1-A2 | Double Orifice : 2×ф0.020"(2×ф0.51mm)Orange | |
Spring | 1-C1 | Stainless steel | |
Housing | 1-D2 | Tail orfice-ф0.080"(¢2.00mm) Natural | |
Dip Tube | 1-E1 | Standard (Natural) | |
Suitability:Air fresheners | |||
Remarks:This aerosol valve specification has been designed and developed for a particular formulation and spray Characteristic only ,Any change in propllants ,actives ,solvents,fragrances or any other product ingredient may make this valve non compatible or unsuitable .JC endeavors to provide the most appropriate aerosol valves to users,but has no responsibility and control over its final application. Users of this valve specification are responsible for testing its compatibility and suitability. |
Specific Application Scenario: Utilize this Foam Clean Spray Valve for industrial machinery maintenance tasks, including cleaning machine parts, removing debris, and lubricating components.
FAQ:
Q: Can this valve withstand harsh industrial environments?
A: Yes, our Foam Clean Spray Valve is designed to withstand harsh industrial environments, ensuring reliable performance and longevity under demanding conditions.
Q: Is the valve compatible with various cleaning agents used in machinery maintenance?
A: Absolutely, this valve is compatible with a wide range of cleaning agents commonly used in machinery maintenance, providing versatility and efficiency in industrial cleaning applications.
Q: Can the valve reach hard-to-access areas of machinery?
A: Yes, the precise foam dispersion capability of this valve allows it to effectively reach and clean hard-to-access areas of machinery, ensuring thorough maintenance.
Q: Does the valve come with adjustable foam density settings?
A: The double orifice stem allows you to control the foam density by adjusting the flow rate, providing flexibility in achieving the desired cleaning results for different machinery maintenance tasks.
Q: How do I ensure the longevity of this valve in machinery maintenance applications?
A: Regular cleaning and maintenance of the valve, as well as following the manufacturer's guidelines for proper use and storage, will help ensure its longevity and optimal performance in machinery maintenance.
