Product Description:
Introducing our Heavy-Duty Carburetor Cleaner Spray Valve, an industrial-grade solution for tackling tough deposits and contaminants in carburetors. This spray valve is specifically engineered to remove stubborn varnish, carbon buildup, and dirt that can hinder carburetor performance. With its double orifice stem featuring ф0.020" (0.51mm) openings, it delivers a powerful and targeted spray for deep cleaning. The Neoprene inner gasket and Buna outer gasket ensure a secure seal, preventing any leakage during use. The stainless steel spring provides durability and consistent performance even under demanding conditions. The housing with a tail orifice of ф0.080" (2.00mm) offers precise spray control. Equipped with a standard dip tube, it effortlessly draws the carburetor cleaner for uninterrupted cleaning action. Trust our Heavy-Duty Carburetor Cleaner Spray Valve to restore optimal performance to your carburetors in industrial settings.
Bullet Points:
Double orifice stem with ф0.020" (0.51mm) openings for powerful and targeted cleaning spray
Neoprene inner gasket and Buna outer gasket for a secure seal and leak prevention
Stainless steel spring for durability and consistent performance
Housing with a tail orifice of ф0.080" (2.00mm) for precise spray control
Standard dip tube for continuous intake of cleaning solution
Code：JC-3394-01

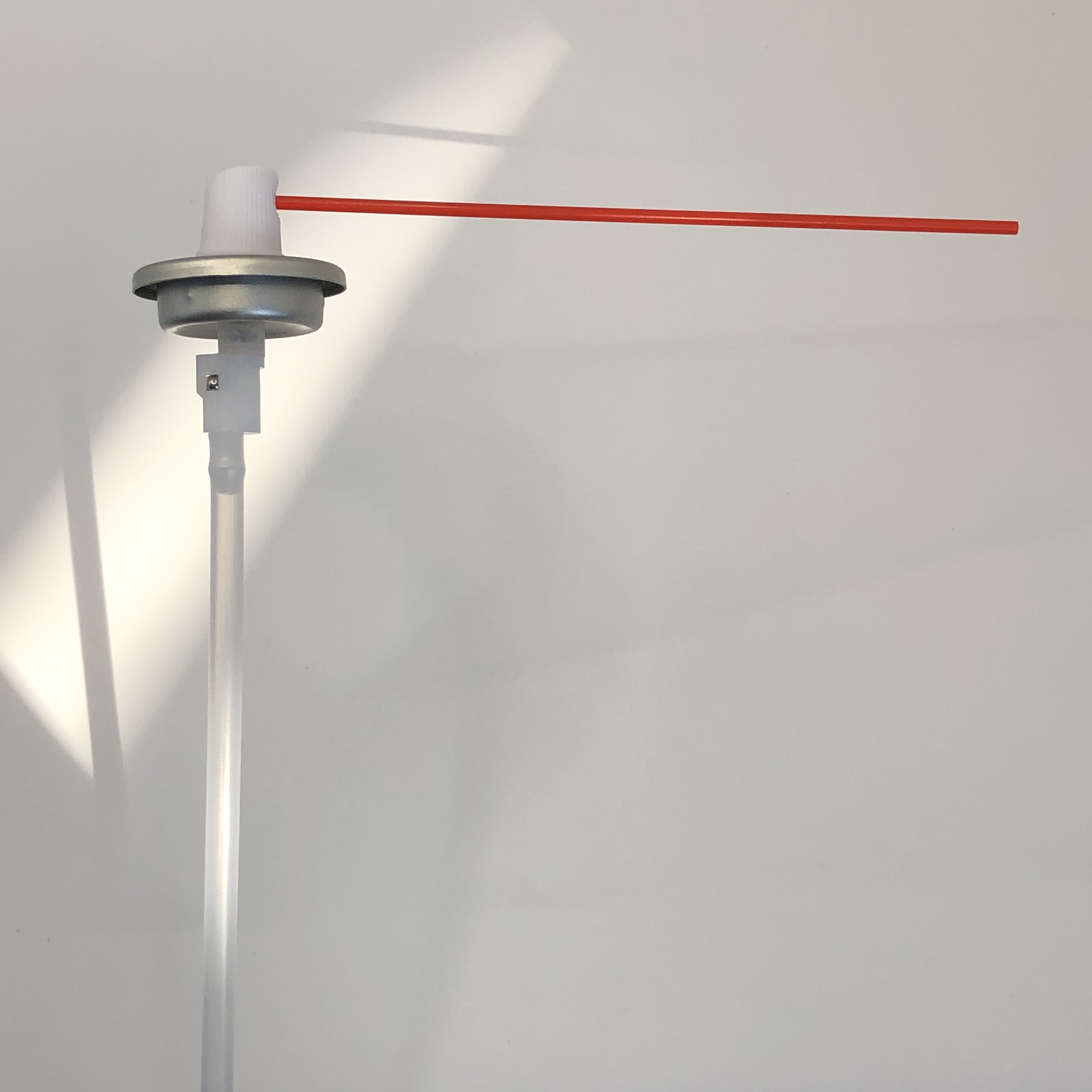

Component | Part No. | Part Description | |
Mounting Cup | 1-F2 | Plain tinplate ,with down dimples |
Outer Gasket | 1-G1 | Buna |
Inner Gasket | 1-B7 | Neoprene (N-205) |
Stem | 1-A2 | Double Orifice : 2×ф0.020"（2×ф0.51mm）Orange |
Spring | 1-C1 | Stainless steel |
Housing | 1-D2 | Tail orfice-ф0.080"(￠2.00mm) Natural |
Dip Tube | 1-E1 | Standard (Natural) |
Suitability：carburetor cleaner spray valve |
Remarks:This aerosol valve specification has been designed and developed for a particular formulation and spray Characteristic only ,Any change in propllants ,actives ,solvents,fragrances or any other product ingredient may make this valve non compatible or unsuitable .JC endeavors to provide the most appropriate aerosol valves to users,but has no responsibility and control over its final application. Users of this valve specification are responsible for testing its compatibility and suitability. |
Specific Application Scenario:
This Heavy-Duty Carburetor Cleaner Spray Valve is ideal for industrial environments where carburetors are subjected to heavy use and encounter stubborn deposits. It is suitable for cleaning carburetors in generators, heavy machinery, construction equipment, and other industrial applications.
FAQ:
Q: Can this spray valve handle extreme temperatures?
A: Yes, the spray valve is designed to withstand a wide range of temperatures typically encountered in industrial settings. It maintains its performance and functionality in both high and low-temperature conditions.
Q: How long should I let the cleaner solution sit in the carburetor before rinsing?
A: The recommended dwell time may vary depending on the severity of the deposits being cleaned. It is advisable to follow the instructions provided with the carburetor cleaner solution for the best results.
Q: Is the spray valve resistant to chemicals?
A: Yes, the spray valve is made from materials that are resistant to common chemicals found in carburetor cleaner solutions. This ensures its longevity and performance even when exposed to strong cleaning agents.
Q: Can I use this spray valve for cleaning other industrial engine components?
A: While the spray valve is specifically designed for carburetor cleaning, it can also be used for cleaning other engine components that are compatible with carburetor cleaner solutions. However, it is always recommended to refer to the manufacturer's guidelines for specific applications.
Q: How often should I replace the spray valve?
A: The spray valve is built to be durable and long-lasting. However, its lifespan may vary depending on usage and maintenance. It is recommended to inspect the spray valve regularly and replace it if any signs of wear or damage are detected.
