High-flow Aerosol valve for Lighter Gas for industrial torches with lockable actuator

Commodity:
Usage:
Sample:
Quality:
Material:
Size:
Availability:
Quantity:
  • JC-3871

  • JINCHENG

High-flow Aerosol valve for Lighter Gas for industrial torches with lockable actuator

Product Description:

Industrial heat-shrink and brazing operations demand sustained, high-output flames. Our high-flow Aerosol valve for Lighter Gas delivers up to 0.15 g/s through a large-bore orifice while a lockable actuator keeps the valve open for hands-free use. The chrome-plated brass body resists sparks and slag, and the lock button prevents accidental shut-off during critical welds.


Bullet points

• High-flow Aerosol valve for Lighter Gas for industrial torches
• Lockable actuator enables hands-free operation
• Large-bore orifice supports up to 0.15 g/s output
• Chrome-plated brass resists welding spatter
• Meets EN 417 and DOT industrial standards


Specific application scenario

On a telecom tower, a technician locks the valve open, directing a steady flame to heat-shrink fiber-optic sleeves while keeping both hands on the torch.

Specifications:


Component

Part Description

Mounting cup

Both sides with clear lacquered tinplate ,with down dimples

Outer gasket Buna
Inner gasket Buna
Stem

Red Color Plastic Butane gas stem ; Double Orifice-Double Orifice 2×ф0.51mm Red

Spring

Stainless steel

Housing

No tail orifice,four slots,black

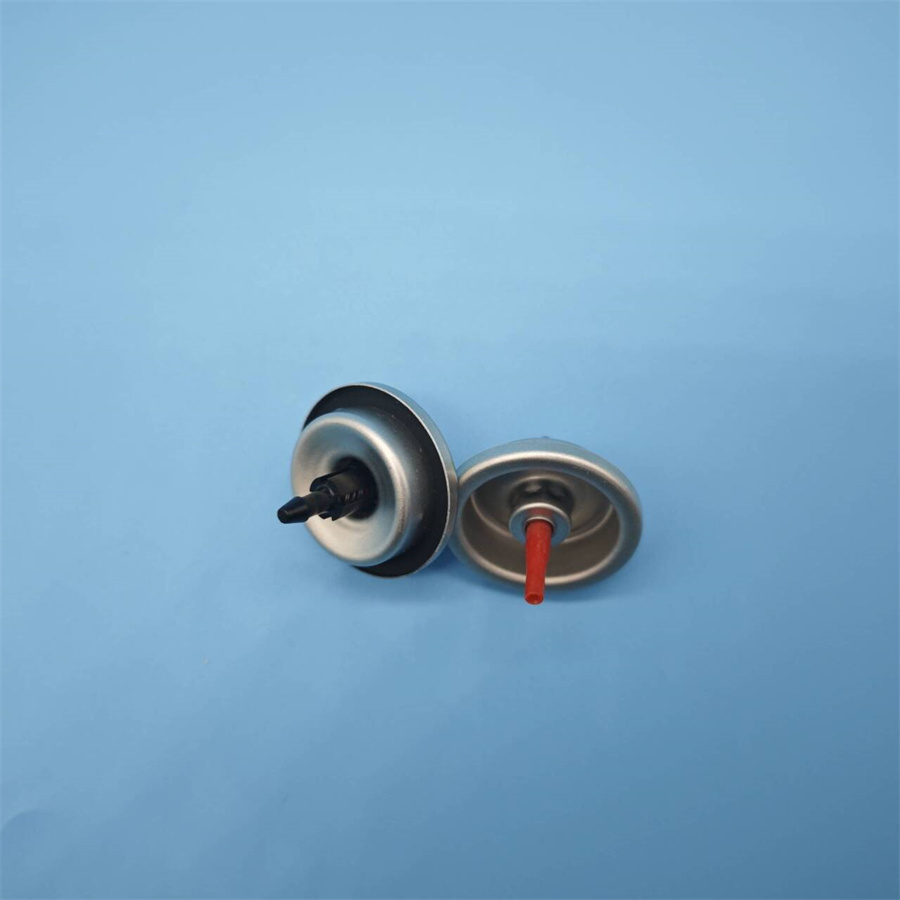

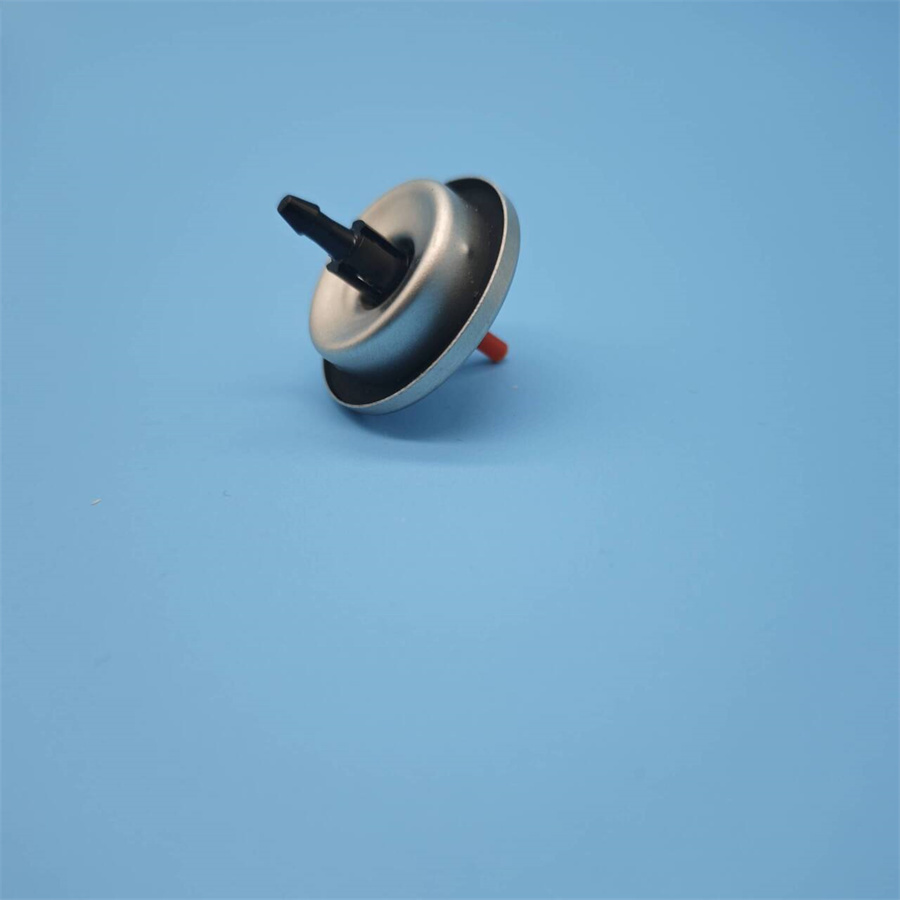

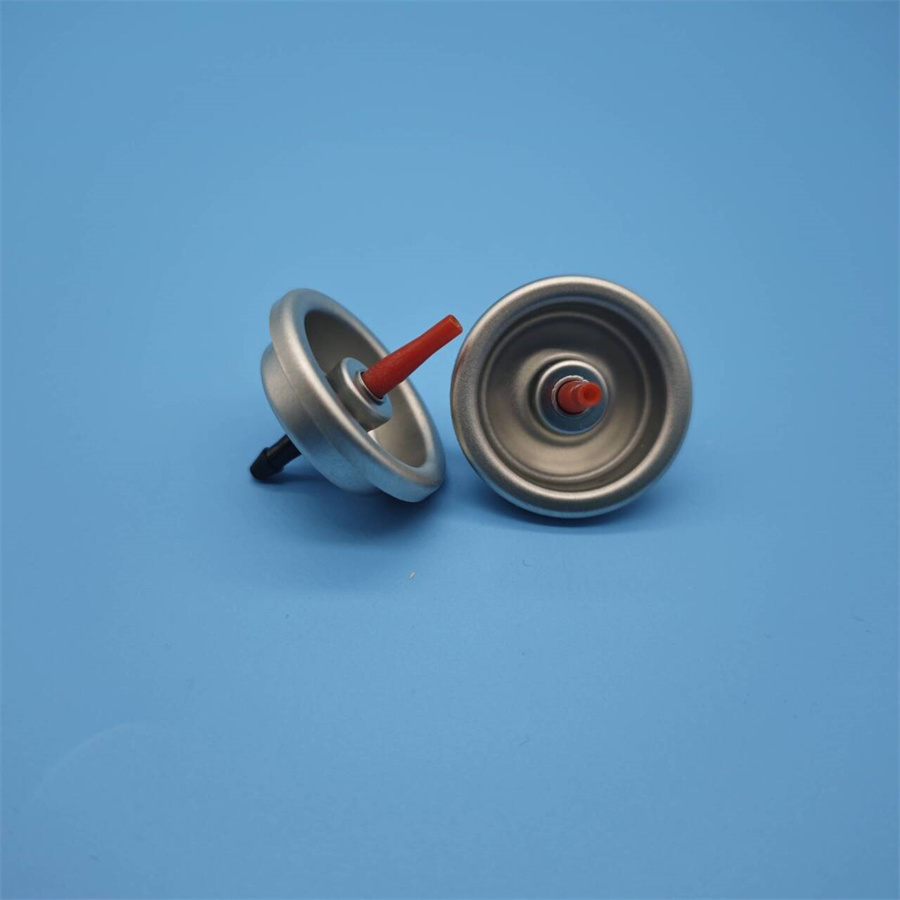

butane gas lighter valve06butane gas lighter valve03butane gas lighter valve09


FAQ
Q1: How does the lockable actuator work?
A1: Depress and twist 90° to lock open; twist back to release.
Q2: What flow rate can the valve sustain?
A2: The large-bore orifice delivers up to 0.15 g/s for industrial torches.
Q3: Is the chrome plating durable?
A3: Triple-layer chrome withstands welding spatter and repeated cleaning.
Q4: Can the valve be rebuilt?
A4: Yes, replacement actuator kits are stocked for field service.
Q5: Which standards does the valve meet?
A5: It is certified to EN 417 and DOT industrial specifications.
